Design Solution

Beyond 45°

Bordeaux Residence · Highland Park, Dallas

GEOMETRY · PROTOTYPING · INNOVATION

An 18:12 ceiling asked an adjustable downlight to do something the product was never designed to do.

An 18:12 pitch is roughly 56 degrees from horizontal. The selected adjustable downlight—and the product category generally—stopped at 45 degrees of tilt. Mounted conventionally to the ceiling plane, the optic simply could not aim where the room required.

Changing fixture families would have compromised the visual language and still would not guarantee the required aiming. Instead, the interface between fixture and ceiling was redesigned. A local mounting geometry effectively changed the plane the downlight saw, bringing the required optical adjustment back inside the fixture's usable range.

The solution moved rapidly from paper geometry to crude physical models and then to a field mockup. Cardboard was enough to test the visual premise; plywood was enough to verify the construction geometry. The point was not model-making polish—it was reducing uncertainty before the ceiling was committed.

When the product limitation is fixed, redesign the interface around it.

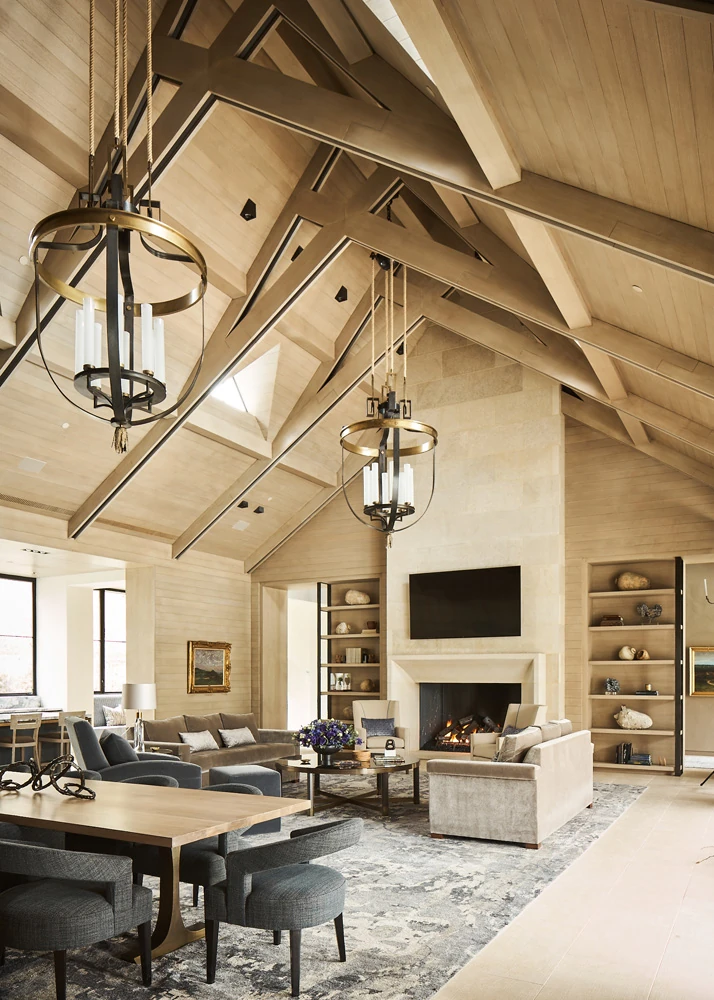

Finished Bordeaux Residence great room with steep pitched ceiling

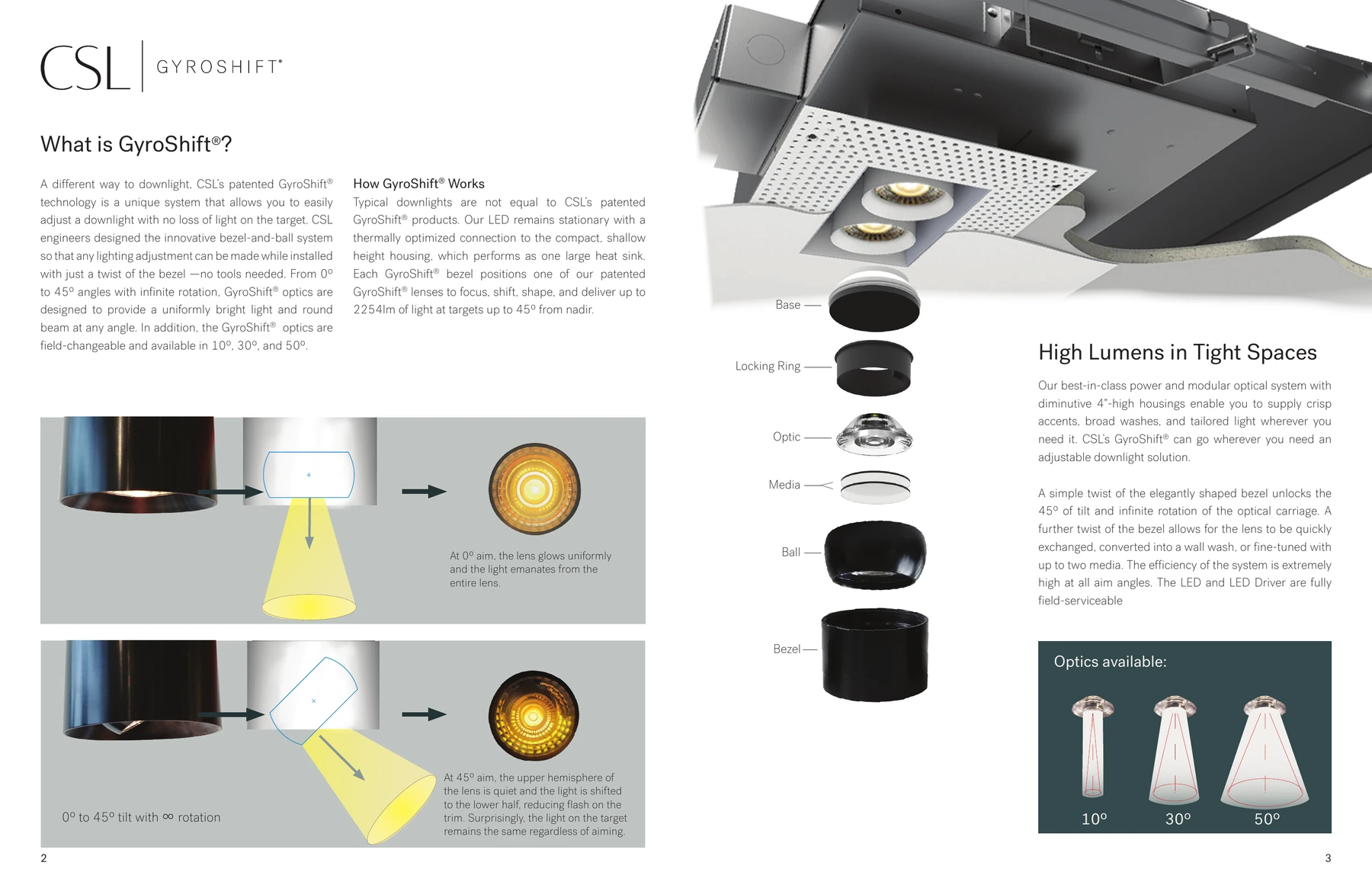

Manufacturer documentation showing the GyroShift 0° to 45° adjustment range

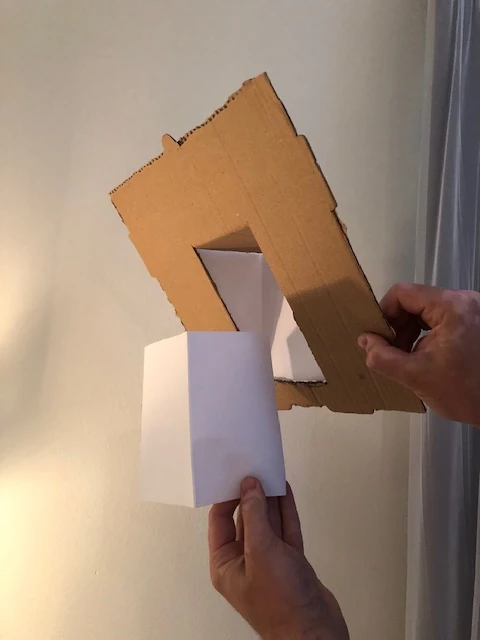

Cardboard and folded-paper study testing the altered fixture plane — Physical studies testing the altered fixture plane

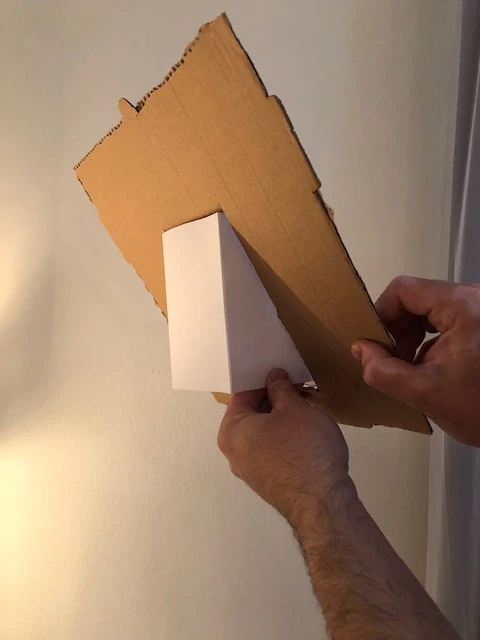

Second physical study testing the altered fixture plane — Geometry refined by hand before field construction

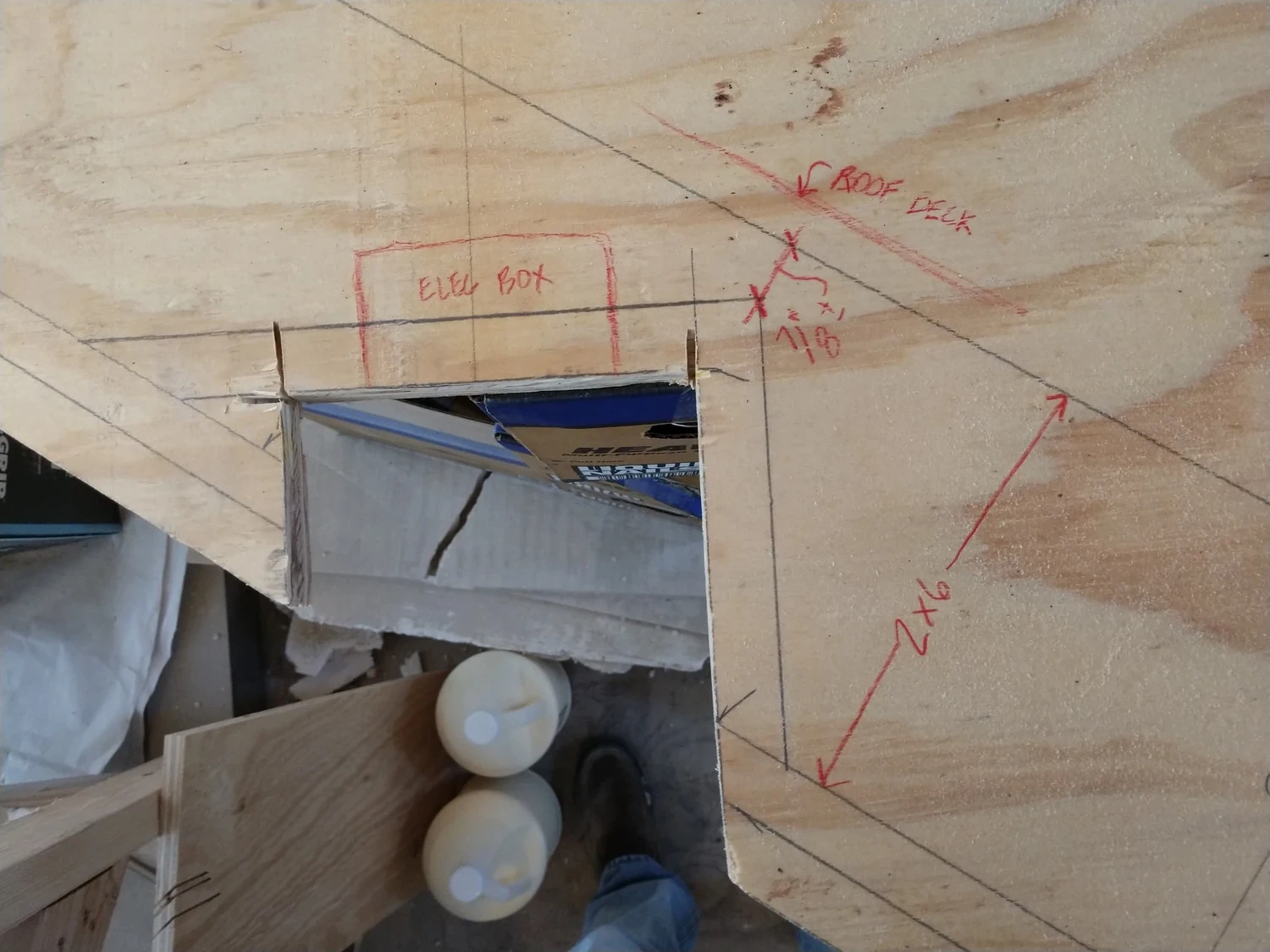

Cut plywood field mockup translating the geometry into a buildable ceiling condition

Geometry Before Hardware

The manufacturer's own GyroShift documentation confirms a 45° adjustment limit. The successful detail did not ask the luminaire to exceed that limit; it changed the mounting condition so the luminaire could operate normally inside an abnormal ceiling geometry.
